HK Audio Linear 5 MKII 308 LTA
Active Full-Range Speaker
Speaker configuration: 3x 8" midrange/woofer and 1x 1.5" tweeter (1.75" voice coil)
Power: 1200 watts (600 watts RMS)
Class D power amplifier
Dispersion angle: 60° x +5/-25º
DSP controllable by software via network
DSP functions: 10-band EQ (fully parametric with variable filter characteristics), low-pass filter, level, polarity, limiter, delay, mute
Frequency range (-3 dB): 105 - 17,000 Hz
Frequency range (-10 dB): 98 - 19,000 Hz
Maximum level: 138 dB
FIR Crossover with 60 db/oct

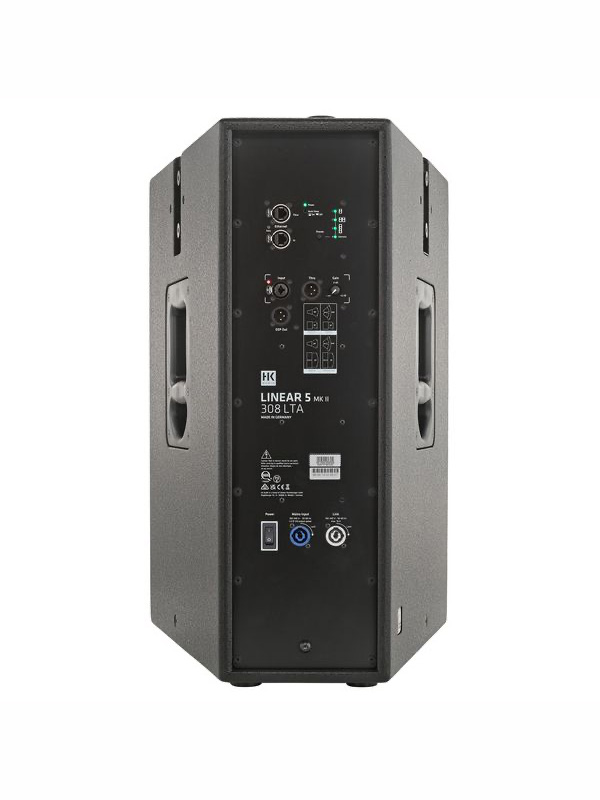

Inputs: 1x XLR/6.3 mm jack combo input, 1x Ethernet In
Outputs: 1x XLR Thru, 1x XLR DSP Out, 1x Ethernet Thru, Powercon NAC3 Thru
Housing material: Birch plywood
Rigging points: 5x M8
Mono tilt high stand flange
2 MultiGrip handles
Dimensions (W x H x D): 440 x 680 x 460 mm
Weight: 25.1 kg
Finish: Black
Includes rain cover for the connection panel
